Technical specifications技術規格：

Input輸入:

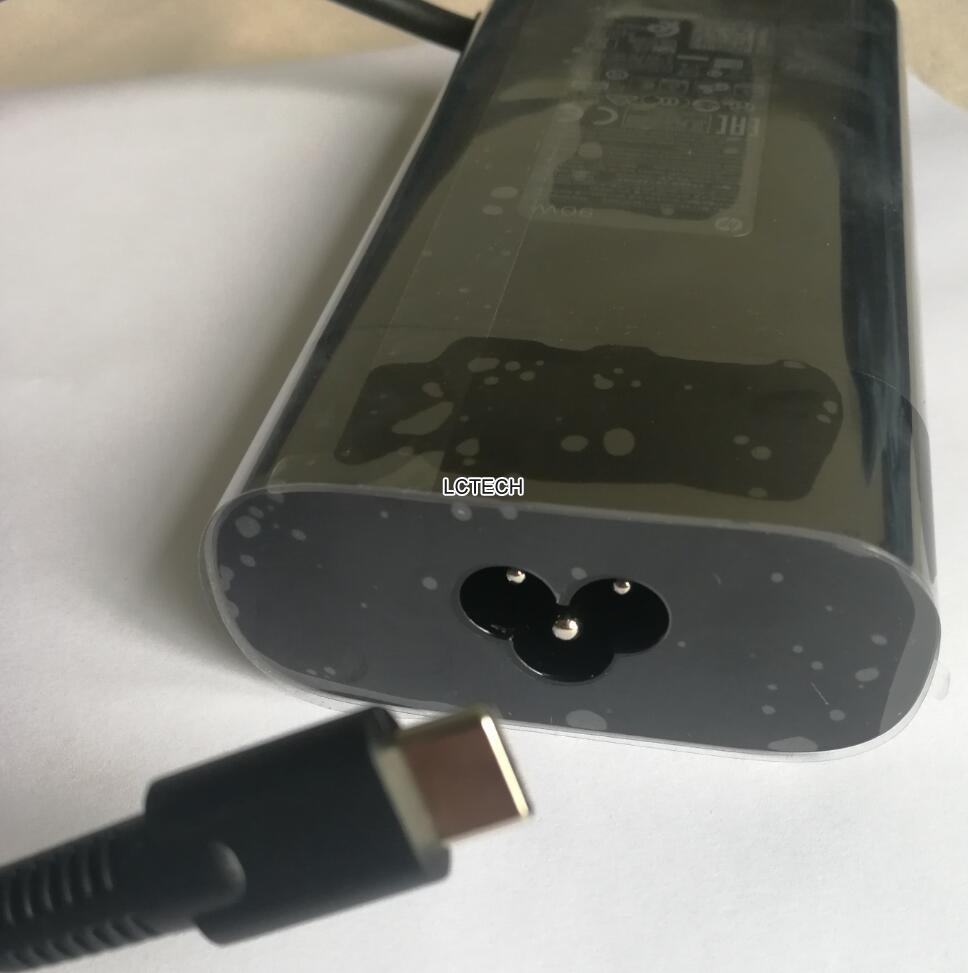

AC Socket交流接口:  C6 梅花尾

Input range輸入范圍：90Vac~264Vac

Frequency頻率：47Hz~63Hz

Input current輸入電流：3.2A Max at 90Vac input voltagefficiency：89% Min. at nominal input voltage, maximum load and measured at the end of DC cable

Output輸出

Output Power輸出功率：90W

Output Volts/Amps輸出電壓/電流：Type-c with PD (5V 3A or 9V 3A or 10V 5A or 12V 5A or 15V 5A or 20V 4.5A )

Output ripple and noise輸出紋波：350 mV peak to peak

DC Plug輸出接口: follow up customer request to offer 按照客戶項目需求提供

Dimensions 尺寸(mm)

L170.0 x W85.0 x H35
